TRIESTE
DISPLAY
SIDE VISION
– Screen size: 1.8”
– Handlebar bracket: 22.2 mm
– Twilight sensor: no
– Remote controller: no
– Walk mode: yes
– BT/ANT+ connectivity: no
CARRIER
Carrier designed for the attachment of travel bags with a maximum capacity of 25 kg.
SKS safety system
A quick release anti-tilt system for the front wheel rods if any foreign bodies should get caught in the wheel.
MOTOR
OLI SPORT EXOS
250W – 85NM
BATTERY
36V – 16AH – 576WH
* Data depend on the road condition and load. Test carried out on computerized test bench.

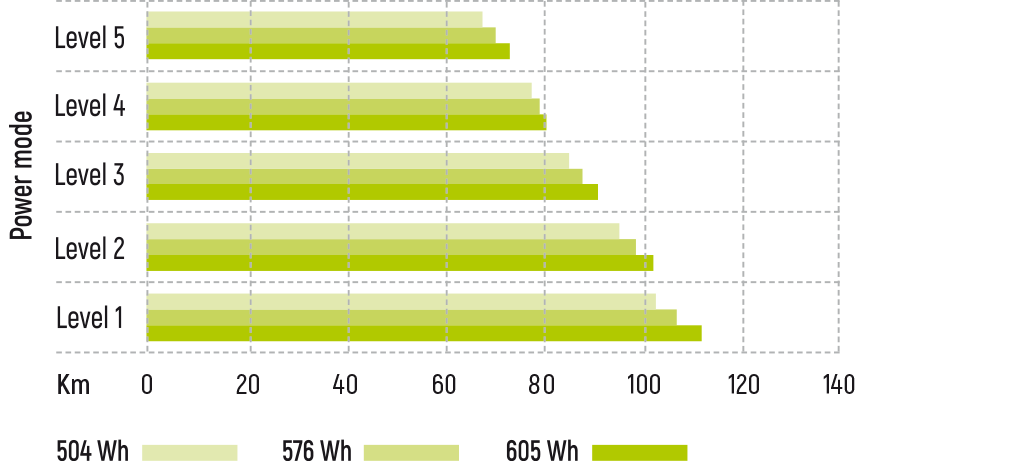

AUTONOMIA
PERFORMANCE IN KM
DEL TORQUE DRIVE SYSTEM
115KM*
BATTERY
36V – 16AH – 576WH
FRAME
HYDROFORMED ALUMINIUM
COLOR
BLACK-BRIGHT RED
BLACK-PETROL GREEN
GEOMETRY
DATA SHEET
| WHEEL | ALUMINIUM RIMS HIGH PROFILE MADE IN ITALY - KENDA 28” X 2.0” |
| FRAME | ALUMINIUM HYDROFORMED |
| FORK | SR SUNTOUR ESC 63 MM |
| STEM | ZOOM ALLUMINIUM ADJUSTABLE |
| HANDLEBAR | ALUMINIUM |
| SADDLE | BASSANO |
| SEAT POST | ALUMINIUM |
| CHAINWHEEL | ALUMINIUM |
| PEDAL | NON SLIP PEDAL |
| BRAKE | SHIMANO MT-200 HYDRAULIC DISC 160 MM |
| GEAR | SHIMANO REVOSHIFT 7 SPEED SL-RS 35 7R |
| REAR DERAILLEUR | SHIMANO TY 300 D |
| FREEWHEEL/CASSETTE | SHIMANO 7 SPEED AMFT 14-28T |
| DISPLAY | MULTIFUNCTION COMPUTER OLI EDS COLOR DISPLAY |
| FRONT AND REAR LIGHT | LED INTEGRATED |
| MOTOR | OLI SPORT PLUS CENTRAL MOTOR TORQUE SYSTEM 250W SPORT PLUS (85NM) |
| MAX SPEED | 25 KM/H |
| BATTERY | LI-ION 36V-16Ah 576WH - REMOVABLE |
| BATTERY WEIGHT | 3 KG |
| CHARGING TIME | 5-6 HOURS |
| MINIMUM CHARGE | 30-40 DAYS |
| RANGE | SEE DATA SHEET AUTONOMY PERFORMANCE MOTOR OLI |
| WEIGHT | 23 KG |
| MAX LOAD CAPACITY | 100 KG |
| CARRIER LOAD CAPACITY | INTEGRATED 25 KG |
| BASKET | NOT INCLUDED |
* Armony reserves the right to make changes without any prior notice, having as its policy the search for continuous qualitative and aesthetic improvements, so it does not give the right to complaints and refunds of any kind. Armony is a registered trademark.
COMPONENTS
