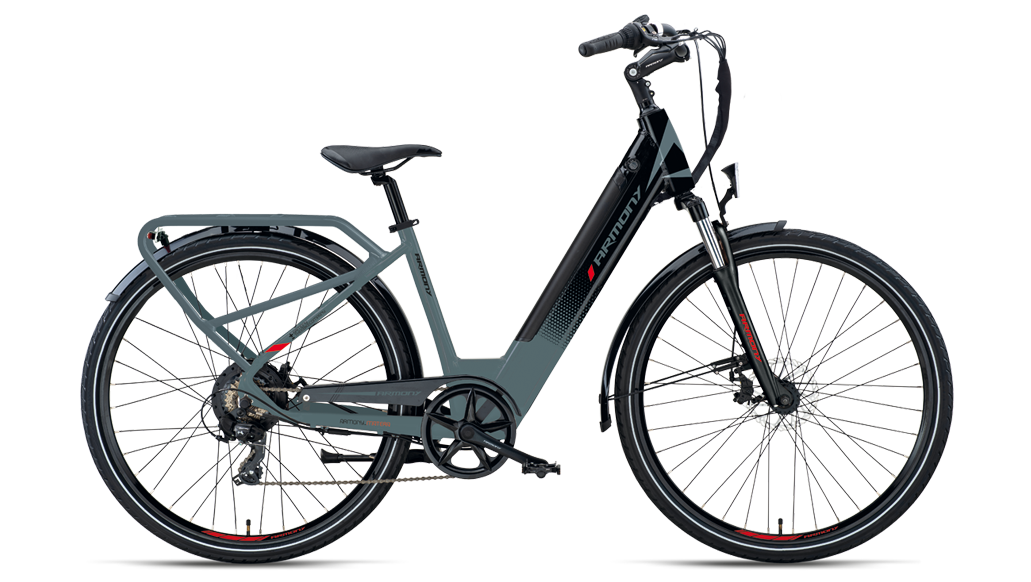

MATERA
DISPLAY
– System power on/off
– 5 Assistance level
– Battery level
– Light on/off
– 6 km/h assistance
– System power off after 10 minutes without operating
CARRIER
Carrier designed for the attachment of travel bags with a maximum capacity of 25 kg.
SKS safety system
Safety system: a quick release anti-tilt system for the front wheel rods if any foreign bodies should get caught in the wheel.
MOTOR
BAFANG BRUSHLESS
36V – 250W
BATTERY
36V – 16AH – 576WH
FRAME
ALUMINIUM
HYDROFORMED
COLORS
BLACK-AVIO BLUE
BLACK-ICE GREY
GEOMETRY
DATA SHEET
| WHEEL | RIM ALUMINIUM HIGH PROFILE DOUBLE HALL MILLENIUM MADE IN ITALY - 26” X 1.75” |
| FRAME | ALUMINIUM HYDROFORMED |
| FORK | ZOOM 45 MM |
| STEM | ZOOM ALUMINIUM ADJUSTABLE |
| HANDLEBAR | ALUMINIUM |
| SADDLE | BASSANO |
| SEAT POST | ALUMINIUM |
| CHAINWHEEL | ALUMINIUM |
| PEDAL | NON SLIP PEDAL |
| BRAKE | MECHANICAL ROTOR 160 MM |
| GEAR | SHIMANO REVOSHIFT 7 SPEED |
| REAR DERAILLEUR | SHIMANO TY 300 D |
| CASSETTE | SHIMANO 7 SPEED 14 - 28T |
| DISPLAY | LED 5 SPEED |
| FRONT AND REAR LIGHT | LED INTEGRATED |
| MOTOR | BAFANG BRUSHLESS 36V 250W |
| MAX SPEED | 25 KM/H |
| BATTERY | LI-ION 36V 16AH 576WH - REMOVABLE |
| BATTERY WEIGHT | 3 KG |
| CHARGING TIME | 5-6 HOURS |
| MINIMUM CHARGE | 30-40 DAYS |
| RANGE | 80 KM APPROXIMATLY DEPENDING ON LOAD AND ROAD CONDITIONS |
| WEIGHT | 25 KG |
| MAX LOAD CAPACITY | 100 KG |
| CARRIER LOAD CAPACITY | 25 KG |
| BASKET | NOT INCLUDED |
* Armony reserves the right to make changes without any prior notice, having as its policy the search for continuous qualitative and aesthetic improvements, so it does not give the right to complaints and refunds of any kind. Armony is a registered trademark.
