ASSO

DISPLAY

MULTI-FUNCTION DISPLAY WITH USB POWER OUT PORT FOR DEVICES RECHARGE

• Cruise Speed
• 5 Assistance level
• Battery level
• ODO
• Trip
• Average Speed
• Max Speed
• Light On/Off
• 6Km/h Assistance
• Motor power showed
• USB power out port

FAT WHEEL

20” x 4.0

2.7 mm Reinforced rear pokes

MOTOR

BAFANG

250W

50Nm

BATTERY SAMSUNG

36V13AH470WH

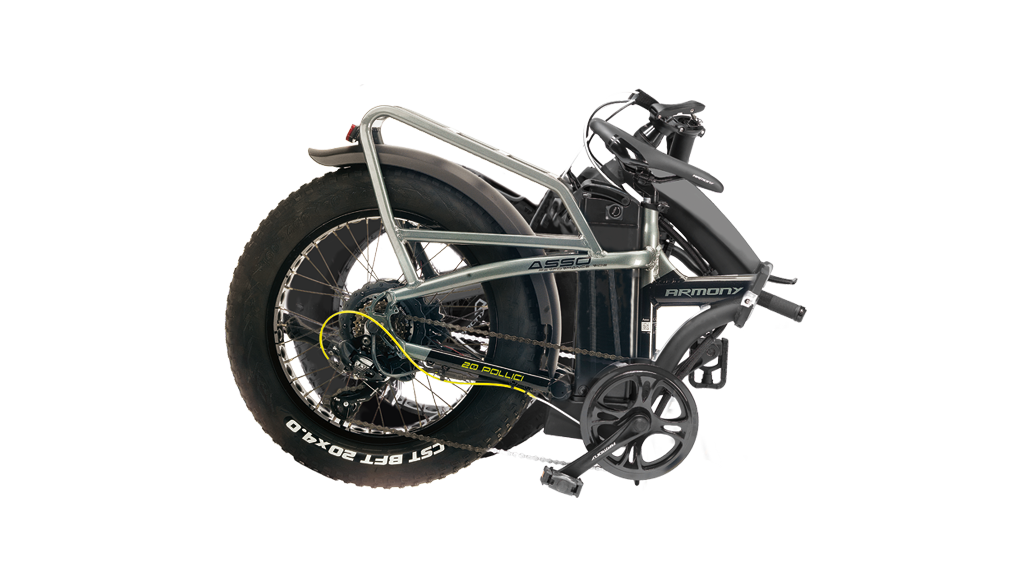

FOLDING

100cm x 80cm x 58cm

FRAME

ALUMINIUM
FOLDING

COLORS

BLACK-GREEN
COD. 21B011

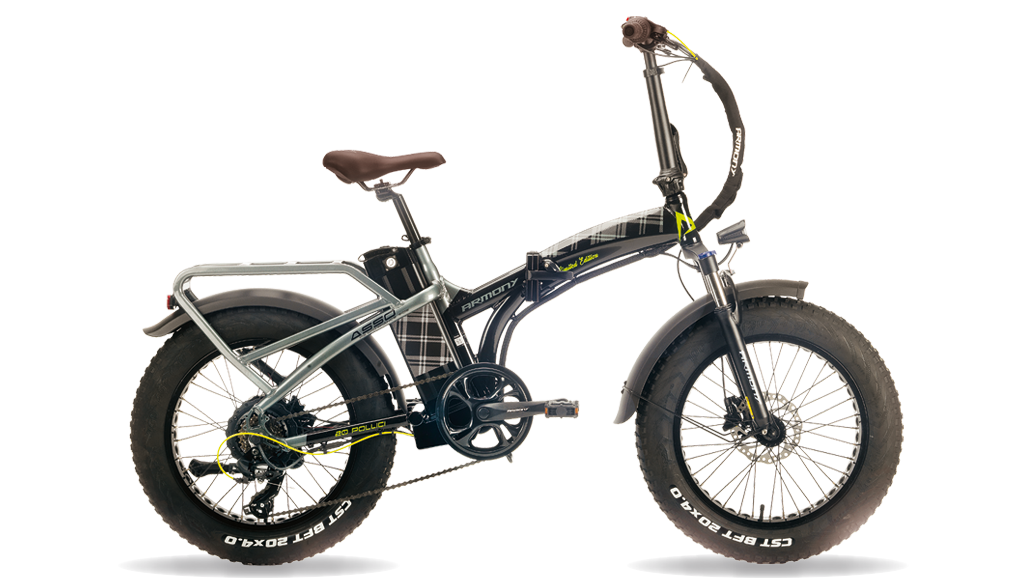

GREY-YELLOW
COD. 21B013

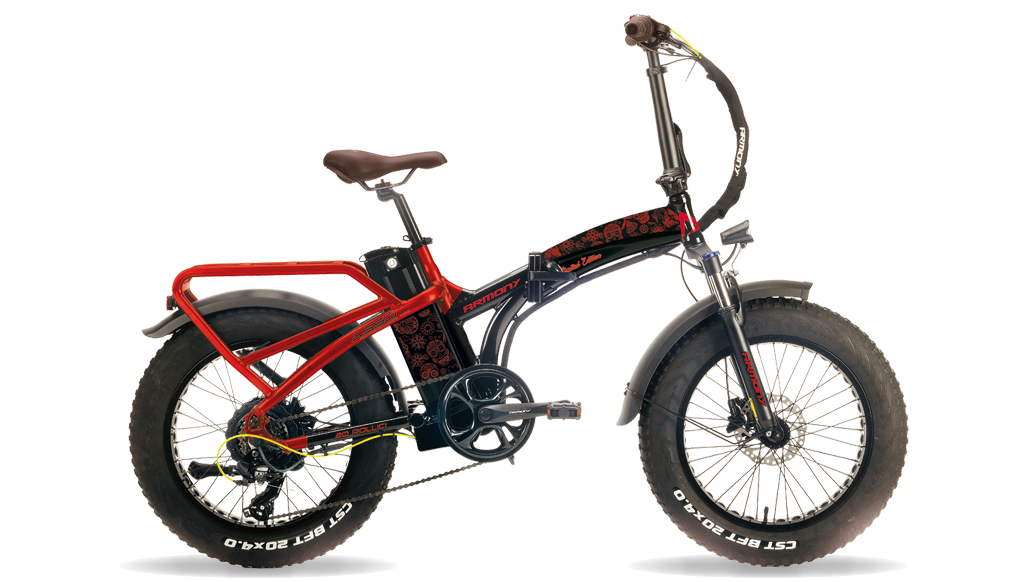

BLACK-RED
COD. 21B012V

GEOMETRY

DATA SHEET

WHEELS20" x 4.0 VEE TIRE MISSION COMMAND- 2.7mm Reinforced rear spokes
FRAMEaluminium folding
FORKRST GUIDE aluminium suspension fork
STEMaluminium folding
SADDLESELLE BASSANO REKO
SEAT TUBEaluminium SP-252 30.4 X350MM
CHAIN WHEELLANXI WHEELTOP SXF8H(48T) with save-space folding pedals FPD-NW-306
BRAKESTEKTRO MD300 disk 160MM
GEARSS-RIDE MODEL MD-M200 6 SPEED (14T-28T)
B-BRACKETTcartridge
DISPLAYCLOUD DRIVE CDC6 multifunction
FRONT AND REAR LIGHTfront LED integrate power supply and integrate horn / rear LED integrate power supply
MOTOR AND POWERBAFANG brushless 36V-250W- 50NM rear hub
MAX SPEED25 km/h
BATTERYLi-ion 36V-13Ah 468Wh SAMSUNG cells (REMOVABLE)
BATTERY WEIGHT3,5 Kg
CHARGE TIME5-6 hours
MINIMUM CHARGE30 -40 days
AUTONOMY50 km approximately, depending on load and road conditions
WEIGHT28 Kg battery included
MAX LOAD CAPACITY90 Kg
CARRIER LOAD CAPACITY25 Kg
BASKETIncluded

* Armony reserves the right to make modifications without any obligation to give prior notice, in line with its policy of continuous improvement in terms of quality and appearance, which therefore does not give right of any kind to make claims or ask for reimbursement. Armony is a trade mark.

COMPONENTS

FIND A DEALER

Armony e-bikes can be purchased from our official dealers all over Italy and beyond!
Find your nearest reseller and purchase the model most suited to your own ideal of fun!
