SANREMO
COLOUR DISPLAY HIGH VISION
– 2“ screen size
– 31.8 mm handlebar bracket
– Light sensor
– Remote control
– Walk mode on the remote control
– BT / ANT+ connectivity
WHEELS
700 X 40C
SKS SAFETY SYSTEM
A quick release anti-tilt system for the front wheel rods if any foreign bodies should get caught in the wheel.
MOTOR
OLI MOVE PLUS
250W – 80NM
* Data depend on the road condition and load. Test carried out on computerized test bench.

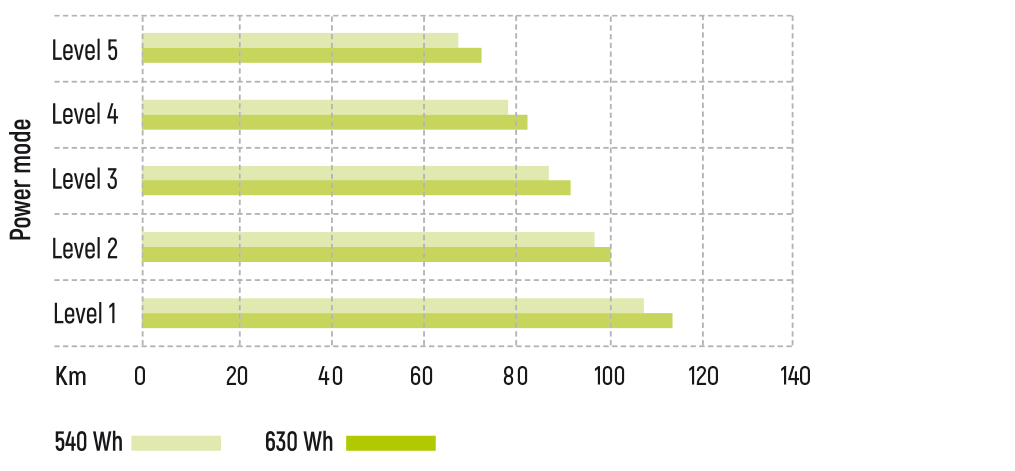

AUTONOMY
AUTONOMY PERFORMANCE IN KM
OF THE TORQUE DRIVE SYSTEM
117KM*
BATTERY
36V – 15AH – 540WH
FRAME
HYDROFORMED
COLOR
SILVER GREY – NARDO GREY – BLACK
GEOMETRY
DATA SHEET
| WHEEL | RIMS DOUBLE HALL HIGH PROFIL MILLENIUM MADE IN ITALY - KENDA HAPPY MEDIUM 700 X 40C |
| FRAME | FRAME HYDROFORMED |
| FORK | ZOOM CH-187D (AMS) 700C |
| STEM | ZOOM - TDS-D299N ADJUSTABLE |
| HANDLEBAR | ZOOM MTB ALLOY W600 BARBORE 31.8 MM BLACK MATT |
| SADDLE | BASSANO |
| SEAT POST | ZOOM SEAT POST SP-C207 |
| CHAINWHEEL | SET CHAINWHEEL 38 TEETH |
| PEDAL | NON SLIP PEDAL |
| BRAKE | HYDRAULIC ZOOM HB 875 DISK 160 MM |
| GEAR | SHIMANO DX 10 V SL-M4100-R |
| REAR DERAILLEUR | SHIMANO 10-11V SGS RD-M4120/5120 DEORE |
| CASSETTE | SHIMANO 10V 11-42 CS -M 4100 |
| DISPLAY | MULTIFUNCTION COMPUTER OLI EDS COLOR DISPLAY |
| FRONT AND REAR LIGHT | LED INTEGRATED |
| MOTOR | OLI EDS CENTRAL MOTOR TORQUE SYSTEM 250W MOVE PLUS (80NM) |
| MAX SPEED | 25 KM/H |
| BATTERY | 36V 15AH 540WH |
| BATTERY WEIGHT | 3.5 KG |
| CHARGING TIME | 6-7 HOURS |
| MINIMUM CHARGE | 30-40 DAYS |
| RANGE | SEE DATA SHEET |
| WEIGHT | 23 KG |
| MAX LOAD CAPACITY | 100 KG |
| CARRIER LOAD CAPACITY | 15 KG |
| BASKET | NOT INCLUDED |
* Armony reserves the right to make modifications without any obligation to give prior notice, in line with its policy of continuous improvement in terms of quality and appearance, which therefore does not give right of any kind to make claims or ask for reimbursement. Armony is a trade mark.
