ARESE
€ 1.989,00
PREZZO AL PUBBLICO IVA COMPRESA
DISPLAY
– 2“ screen size
– 31,8mm handlebar bracket
– Light sensor
– Remote control
– Walk mode on the remote control
– BT / ANT+ connectivity
– 31,8mm handlebar bracket
– Light sensor
– Remote control
– Walk mode on the remote control
– BT / ANT+ connectivity
WHEEL
28”
SKS safety system
Safety system: a quick release
anti-tilt system for the front wheel rods if any foreign bodies should
get caught in the wheel.
MOTOR
OLI EDS MOVE PLUS
250W
80NM
* Data depend on the road condition and load. Test carried out on computerized test bench.

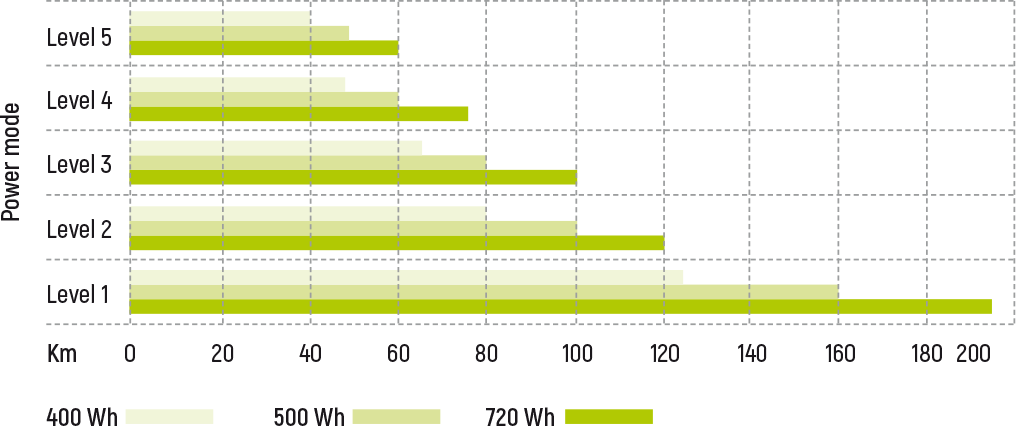

AUTONOMY
AUTONOMY PERFORMANCE IN KMS
OF THE TORQUE DRIVE SYSTEM
165KM*
BATTERY
36V – 15AH – 540WH
FRAME
HYDROFORMED
COLOR
BLACK
COD. 21B023
COD. 21B023

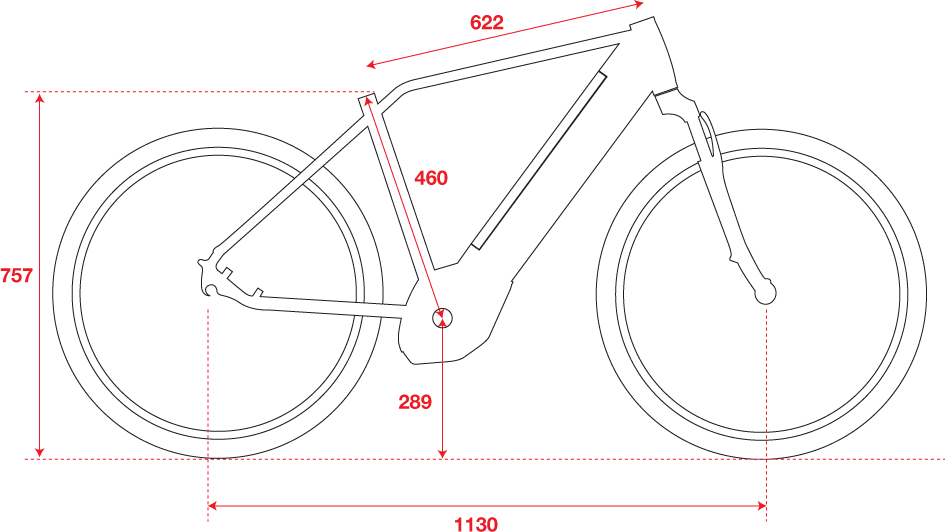

GEOMETRY
DATA SHEET
| WHEEL | 700 X 40C KENDA HAPPY MEDIUM - RIM ITALIA |
| FRAME | FRAME HYDROFORMED |
| FORK | ZOOM CH 187D (AMS) 700C |
| STEM | ZOOM-TDS D299N ADJUSTABLE |
| HANDLEBAR | ZOOM MTB ALLOY W600 BARBORE 31.8MM BLACK MATT |
| SADDLE | BASSANO VOLARE ICON 3ZONE |
| SEAT POST | ZOOM SEAT POST SP C207 |
| CHAINWHEEL | SET CHAINWHEEL 38 TEETH |
| PEDAL | NON SLIP PEDAL |
| BRAKE | HYDRAULIC ZOOM BRAKE KIT HB 875/CR01 ROTOR 160MM |
| GEAR | S-RIDE SL M300 TRIGGER SHIFTER 9 SPEED |
| REAR DERAILLEUR | S-RIDE RD M300 9 SPEED |
| CASSETTE | S RIDE CS M300 9 SPEED 11-36 TEETH |
| DISPLAY | MULTIFUNCTION COMPUTER OLI EDS COLOR DISPLAY |
| FRONT AND REAR LIGHT | LED INTEGRATED |
| MOTOR | OLI EDS CENTRAL MOTOR TORQUE SYSTEM 250W MOVE PLUS (80NM) |
| MAX SPEED | 25 KM/H |
| BATTERY | LI-ION FRAME INTEGRATE-36V 15AH 540WH REMOVABLE |
| BATTERY WEIGHT | 3,5 KG |
| CHARGING TIME | 6-7 HOURS |
| MINIMUM CHARGE | 30-40 DAYS |
| RANGE | SEE DATA SHEET |
| WEIGHT | 23 KG BATTERY INCLUDED |
| MAX LOAD CAPACITY | 100 KG |
| CARRIER LOAD CAPACITY | 25 KG |
| BASKET | NOT INCLUDED |
* Armony reserves the right to make modifications without any obligation to give prior notice, in line with its policy of continuous improvement in terms of quality and appearance, which therefore does not give right of any kind to make claims or ask for reimbursement. Armony is a trade mark.
COMPONENTS
